Shaanxi Xuefeng Refrigeration Engineering Co. Ltd.
 |
| Place of Origin: | Shaanxi, China (Mainland) |
| Brand Name: | SNOW-HARVEST |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case or with outer carton, or as per customers' specific requirements. |
| Delivery Time: | 30 work days |
| Payment Terms: | L/C |
| Supply Ability: | 1000 |
| Compressor Type: | Screw | Compressor Brand: | Refcomp |
|---|---|---|---|
| Case Material: | Galvanized Steel | Condensing Unit Controller: | Automatic Electric Controller |
| Used For: | Cold Freezer Room/cold Storage | Compressor: | No. 1,2,3,4,5 Or More Paralleled |
| High Light: | cold room refrigeration unit,water cooled compressor refrigeration |
||

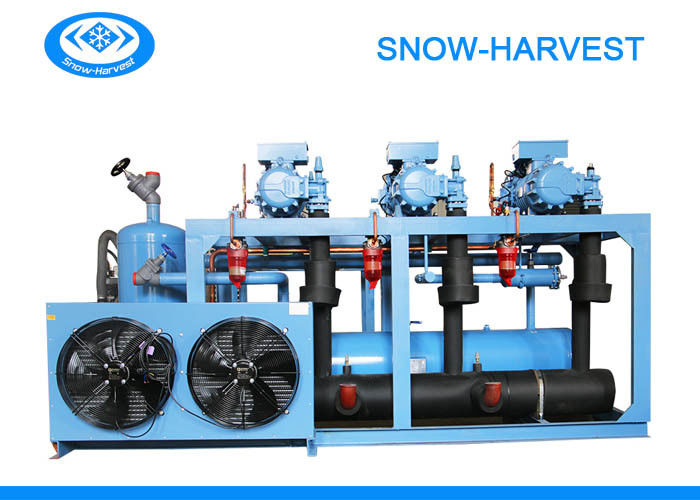

Refcomp refrigeration compressor paralleled screw freezer unit
Description:
With the rapid development of the refrigeration equipment market, large preservation storages, low-temperature freezing storage, ice making equipment are more and more used. Parallel compressor unit is mostly used to work for large size cold rooms, ice making, chilled water making etc with temperature requirement ranging -5℃~5℃ and -20℃~-15℃. The compressors quantity on unit can be 2, 3, 4, 5, 6 or more. .The products are equipped with muti protection devices for wrong direction, overheating, overloading, overhigh discharging temperature, overlower oil level, oil flow, and high and low pressure etc. The refrigeration system has multi-phase cap regulation system to save energy significantly.
Product details:
| Compressor type | screw |
| Compressor brand | Refcomp |
| Refrigerant | R22/R507/other |
| Voltage | 380V/3Ph/50Hz or 220v/3ph/60hz |
| Application | Cold room, freezer room |
| Cooling capaicty | 25kw- |
| Cooling method | Water cooling |
| Compressor | No. 1,2,3,4,5 or more paralleled |
Screw Compressor Unit Types:
| High-temperature Type | Evaporating temperature of 12.5°C~-10, and the nominal power of compressor motor is from 60HP to 600HP. |
| Intermediate-temperature Type | Evaporating temperature of -15°C~-30°C, and the nominal power of compressor motor is from 50HP to 540HP. |
| Low-temperature Type | Evaporating temperature of -35°C~-45°C, and the nominal power of compressor motor is from 50HP to 540HP. |
Standard configuration of Screw type parallel compressor refrigeration units
1. Low-temp type: screw compressor, liquid receiver, gauge panel,high and low pressure controller, electric cabinet, oil separator, water-cooling type oil cooler, economizer, liquid supply filter,suction line filter,injection components.
2. High-temp type: screw compressor, liquid receiver,gauge panel, high and low pressure controller, electric cabinet, oil separator,spray liquid cooling system, liquid supply filter,suction line filter.
Product Features:
1. Better the Thernal loading, power saving.
Because for large cold storage project, we suit the refrigeration system unit as max cooling capacity need, During process,no need so large, our rack condensing unit can adjust and unload power automatic, save your power. and make sure compressor rest.
2. High efficiency over 25%
When one room enter more products, we can use the all refrigeration system to cool it, high efficiency to reach target.
3. Remote controller
Complete rack condensing unit system are under automatic PLC control, make whole system always operate with high performance. Special remote controller system, you can monitor and adjust parameter in your office, same with in site!
FAQ:
Q1: Are you a factory or a trading company?
A1: We are a factory.
Q2: Is a sample available?
A2: Yes, but the sample will be at your charge.
Q3: What are your terms of packing?
A3: Generally, we pack our goods in bulks or wooden box, suitable for shipping container.
Q4:Can you produce according to the samples?
A4: Yes, we can produce by your samples or technical drawings.
Q5:How do you make our business long-term and good relationship?
A5: We keep excellent quality, thoughtful after-sales service and competitive price to ensure our customers' benefit.
