Polyurethane Cold Room Roof Panels Soundproof Low Noise Air Conditioning

Product Details:

Place of Origin:	Shaanxi, China (Mainland)
Brand Name:	SNOW-HARVEST

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Wooden case or with outer carton, or as per customers' specific requirements.
Delivery Time:	30 work days
Payment Terms:	L/C
Supply Ability:	1000

Contact Now

Detailed Product Description

Product Name:	Cold Storage Panel	Dimension(LWH):	Customized
Thickness:	50mm,75mm,100mm,120mm,150mm,200mm	Color:	White, Grey,Blue, Red, Etc. As Required
Material:	Polyurethane (PU)	Application:	Cold Storage Room Freezer Room
Highlight:	cooler freezer panels , cool room panel roofing

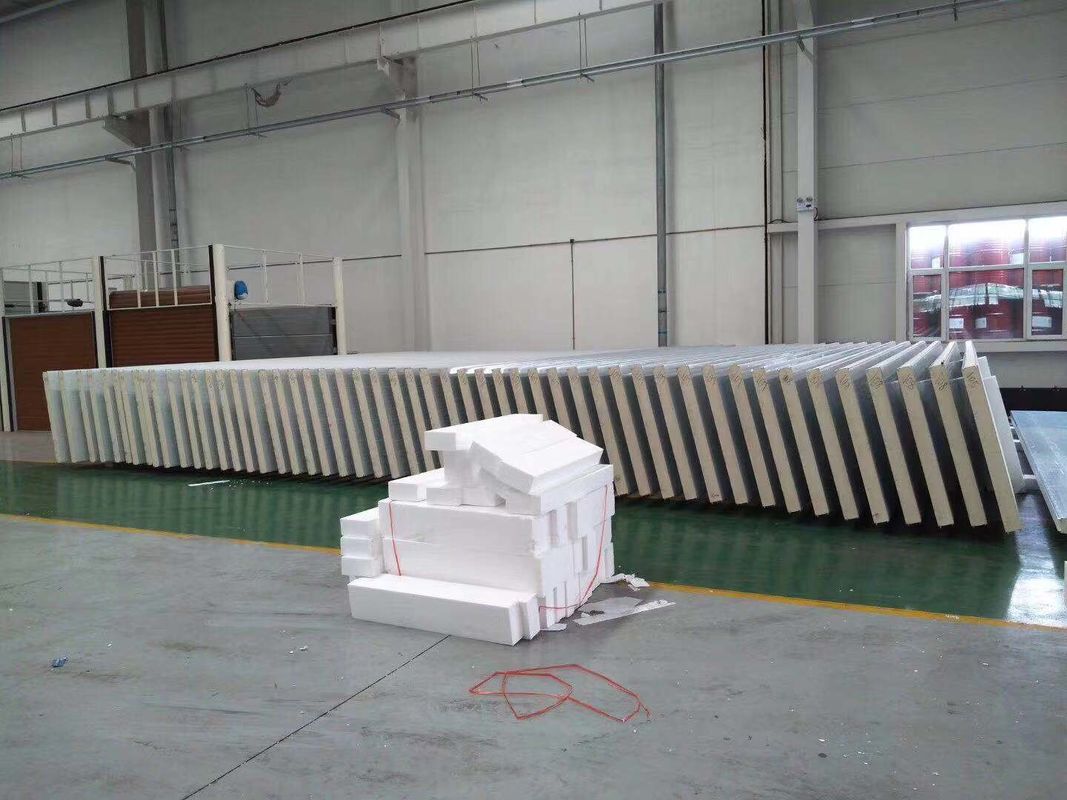

Cold Store Room PU Sandwich Plate Wall Panel

PU cold storage room panel is a kind of board used for enclosing structures, which has good heat insulationand higher intensity.It can reduce the heat transmission caused by difference in the internal and external temperature, and get to maximum efficiency of freezing and refrigeration systems. Designed scientifically and easy to use. It is a new type of heat insulation material for lower construction cost.Panels are in multiple varieties and specifications to meet the need of various sites and projects.

Product Imformation

Type		Polyurethane(pu)Sandwich Panels
Panel Material		Painted steel sheet,stainless steel sheet,or other.
Place of Origin		China
Density		40-42kg/m3
Length		Customize
Effective Width		1000mm
Core thickness		50mm,75mm,100mm,150mm,200mm
Features		soundproof, fireproof, waterproof
Certificates		CE, ISO14001, ISO9001,
Color		White, Grey, Sliver, Sea Blue, Red, etc. as required
Lifetime		20-30 years
Fire proof rate		B1
Usage		Vatious roofs and walls referring to the large size factory Building,storages,exhibition halls,gymnasiums,etc.

Application:

For cold room building ,here is our suggestion for cold room panel :

Thickness of cold storage panel	Application temperature
50mm	Temperature 5°C or above
75mm	Temperature -5°C or above
100mm	Temperature -5'C~-25°C or above
150mm	Temperature -18'C~-45°C or above
200mm	Temperature -55°C or above

Features

1). Size: Customized
2). Functions: Fresh-keep, freezing, quick-freezing, fire-proof, explosion-proof, air-conditioning are all available
3). Good performance, low noise and high reliability
4). World renowned brand refrigeration accessories, guarantee long use cycle.
5). The automatic high precision digital controller is easy to operate with high efficiency.

FAQ:

Q1: Are you a factory or a trading company?
A1: We are a factory.

Q2: Is a sample available?
A2: Yes, but the sample will be at your charge.

Q3: What are your terms of packing?
A3: Generally, we pack our goods in bulks or wooden box, suitable for shipping container.

Q4:Can you produce according to the samples?
A4: Yes, we can produce by your samples or technical drawings.

Q5:How do you make our business long-term and good relationship?
A5: We keep excellent quality, thoughtful after-sales service and competitive price to ensure our customers' benefit.
